Set up self-hosted Document Processing

To set up self-hosted Document Processing, you need to:

Determine where to install Document Processing
Install Document Processing
Configure the host location and available languages
Tuning Document Processing server performance

Document flow when using our self-hosted document processing

The below diagram shows how a scan document travels through the PaperCut MF system when using our self-hosted document processing.

Please note, documents delivered to a Cloud Storage endpoint (Dropbox, OneDrive, Google Drive, etc.) will continue to be delivered via our PaperCut Cloud Services

The flow of a scan document when using one or more self-hosted document processing servers

Step 1: Determine where to install Document Processing

For smaller environments, it makes sense to install Document Processing alongside the Application Server. In medium to larger environments, though, you can ensure optimum system and Application Server performance by setting up one or more dedicated Document Processing servers that the Application Server can contact.

See the table below for recommendations.

Environment size	Approx. scan jobs per day	Recommended processors*	Recommended installation location	Benefits
Small	0 – 50	2	Application Server	Less infrastructure cost.Great for smaller business with occasional Document Processing load
Medium	50 – 200	3	Start on a well- resourced Application Server. Monitor and plan for a separate server on an as-needed basis.	Balances resource use, system performance, and Document Processing performance.
Large	200+	4+	One or more separate high performing Document Processing servers	Dedicated resources mean better handling of high scanning load, spikes, and multiple jobs. For example, in larger Enterprise or Education environments.Document Processing’s heavy resource requirements don’t interfere with the normal operation of the Application Server.

*Recommended available processors to use (to support parallel jobs).

Keep in mind that the more storage and processing power available, the better Document Processing performs—make as much available as you can. For any environment size, we recommend:

at least 10 GB available disk space
512 MB available memory
running a 64-bit edition of Microsoft Windows.

For information about:

supported Windows versions, see System Requirements
performance tuning of a standalone or co-located installation, see the Tuning Document Processing server performance section below.

Step 2: Install Document Processing

Log into the PaperCut Admin interface.
Navigate to Options, then Capture.

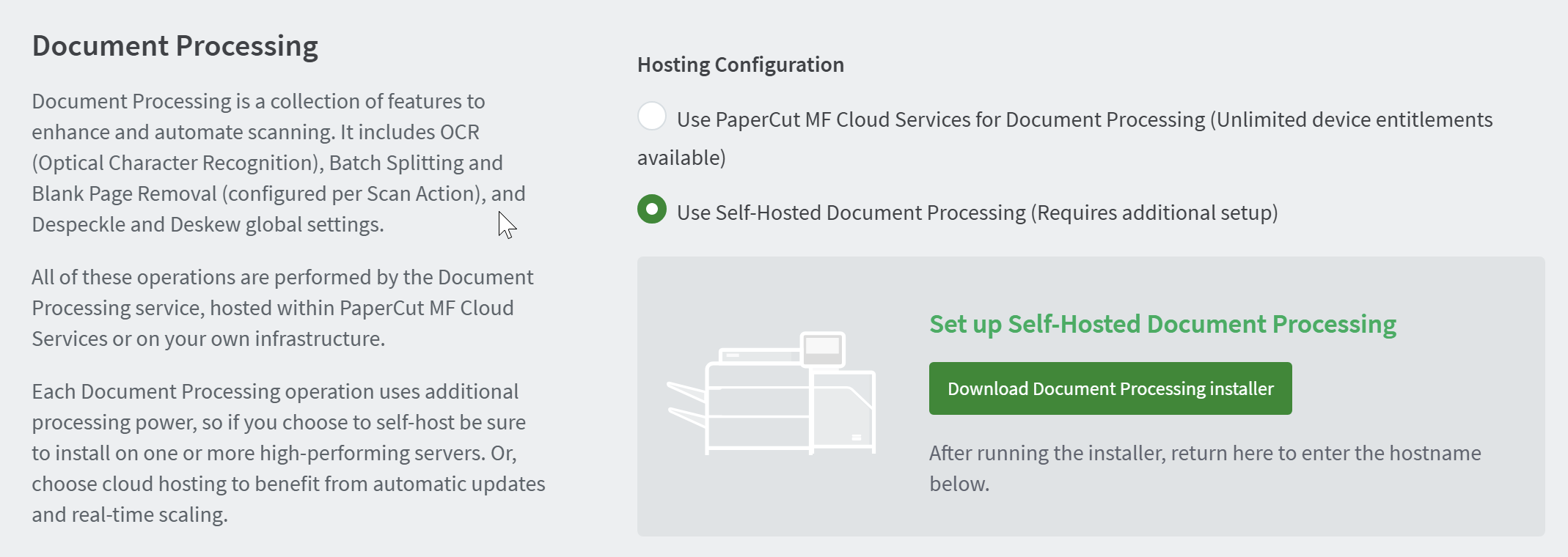

Make sure the Hosting Configuration is set to Use Self-Hosted Document Processing.
Click Download Document Processing Installer.

For offline installations, the installers can be downloaded manually here:
- Document Processing (OCR) installer.
- GhostTrap (for processing PDF files)
- Pandoc (for processing DOCX files)
On the Document Processing server, run the pc-ocr-server executable. The Setup Wizard is displayed.
Follow the prompts during the install.
- Install the GhostTrap component to process PDF files.
- Install the Pandoc component to process DOCX files.
On Windows servers, the installer automatically configures the Windows Firewall. If you are using a non-Windows firewall, open port 9181 (inbound) to allow connections from the PaperCut MF Application Server.
Repeat the process for each Document Processing server you wish to add.

Step 3: Configure the host location and available languages

Back in the PaperCut MF Admin web interface, navigate to Options, then Capture if not already there.

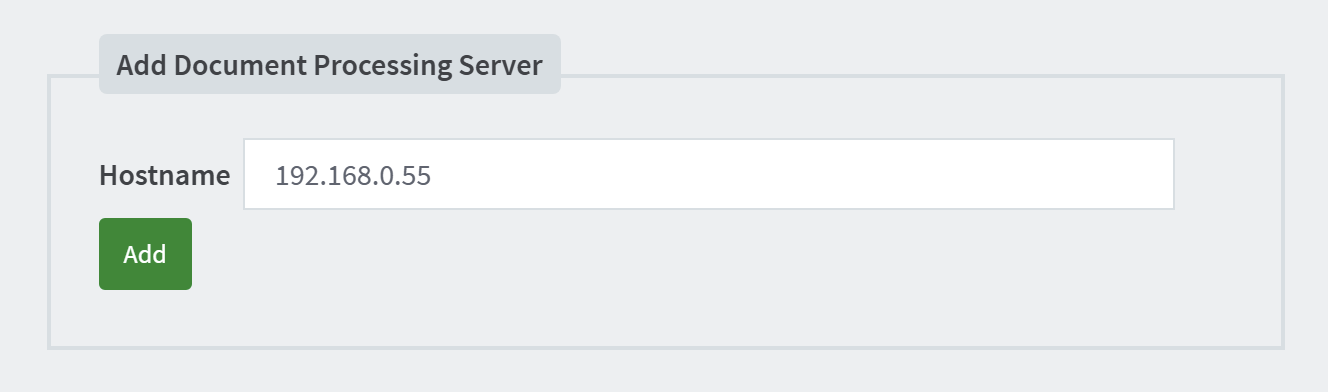

Under Add Document Processing Server, enter the static IP address or fully qualified domain name of the server where you installed the Document Processing service.
Click Add.

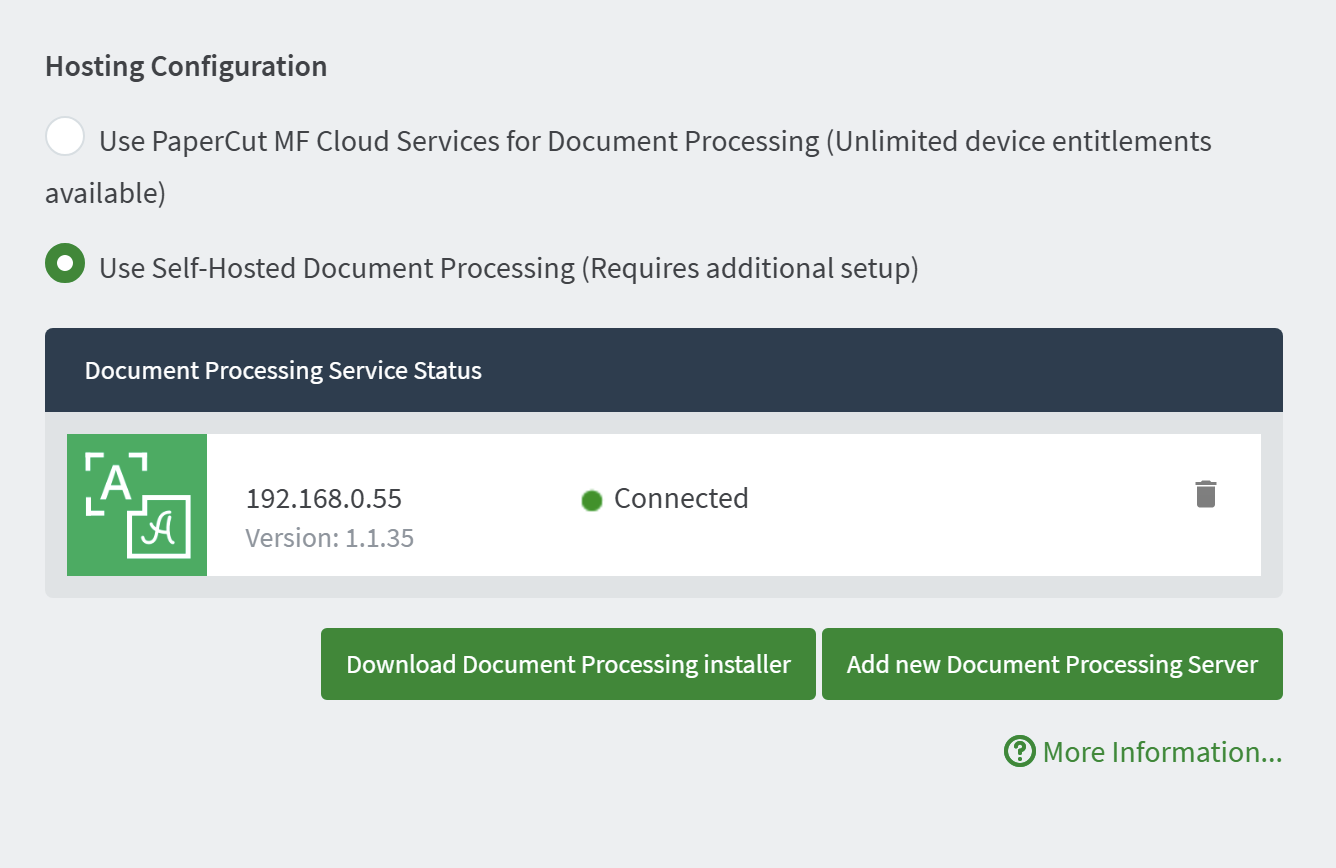

The Hosting Configuration area should now update with the details of the new server and a status indicator.
Repeat the previous steps to add additional servers as needed.
Lastly, make sure you have set up scan actions with Document Processing options enabled so you can test scanning a file.

Post setup: Tune Document Processing server performance

The approach to tuning a Document Processing server’s performance depends on whether it’s on a standalone system or co-located with other services.

By default, a Document Processing server processes two jobs in parallel, and they are processed with a normal CPU priority. As described below, you can change the default number of parallel jobs by modifying the configuration file at:

[ocr-server-path]/data/config/config.toml

After making changes to the config file, you’ll need to restart the Windows service: PaperCut OCR Server.

How does job allocation work when using multiple self-hosted document processing servers?

When using our self-hosted document processing, each server has a configuration key: MaxJobsInParallel with a default of 2. This means the server can process two jobs at a time. If required, the number of slots can be adjusted following the steps below.

When each server is registered with the Application Server, their slots (based on the configuration key) become available.

Jobs are allocated to the available slots in a first in, first out order (in order of registration) and weighted by time and job size (small and old jobs have a higher priority, so they may jump the queue).

When a job is completed, the slot becomes available again for the Application Server to assign the next job. This means jobs are evenly distributed between servers according to availability and capacity.

Tuning for installation on a standalone system

For best performance when installing the Document Processing server on a standalone system, it’s a good idea to maximize the number of jobs that can be processed in parallel.

The ideal number to use depends on many factors, such as the type and size of the documents being processed and the system architecture. A reasonable starting point is to use the total number of virtual CPUs (or cores times threads on a “bare metal” system) minus two.

Put another way, if you want to process four jobs in parallel and you’re installing Document Processing on a virtual machine, give it six virtual CPUs and adjust the below configuration key accordingly.

To make this change:

In the config.toml file, remove the # at the start of the MaxJobsInParallel line to uncomment the option and make it active.
Set the MaxJobsInParallel line to MaxJobsInParallel = 4
Restart the Windows service: PaperCut OCR Server

Tuning for co-location with the Application Server

If your system has additional available processors (beyond what the Application Server is using), you might want to consider increasing the number of jobs that are processed in parallel from the default of two.

To make this change:

In the config.toml file, remove the # at the start of the MaxJobsInParallel line to uncomment the option and make it active.
Set the MaxJobsInParallel = 3
Restart the Windows service: PaperCut OCR Server
